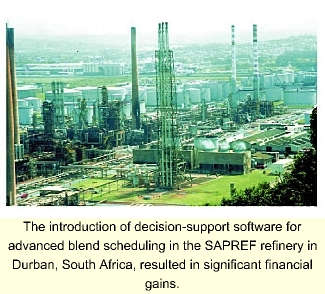

Economic analysis at South African Petroleum Refineries (Pty) Ltd.'s (SAPREF) refinery, a Royal Dutch/Shell and BP joint venture in Durban, South Africa, revealed savings of $1.5 million in 1 year directly attributable to the use of an advanced blend-scheduling decision-support tool called MPMP.
MPMP, which stands for Multi-Period, Multi-Product and was developed by Shell Global Solutions International, is a computer program that optimizes refinery operations from the point at which rundown streams arrive from the various process units for product blending.
The program considers options for three aspects of the blending process: intermediate pooling in component tanks, blending of the finished grades (both batch and in-line blending), and final storage in product tanks for ultimate delivery from the refinery.
MPMP addresses these aspects of refinery management simultaneously for a range of products and during an extended period of time. Refinery schedulers consequently gain a "look-ahead" capability, which gives them greater flexibility and allows them to exploit the components they produce to the fullest extent.
Fundamental challenge
Refineries strive to extract the maximum value from their various component streams. Minimizing product quality give-away is a common goal. Other important goals are preventing excessive stock levels, minimizing oil movements, and avoiding delays to ships lifting their cargoes.
Skilled management of the entire blending and scheduling process, which requires balancing these and other factors, results in improved refinery margins. Balancing factors is far from easy, however. The challenge is particularly difficult when a refinery's production is for export and it must meet many different product specifications during a short time.
Fortunately, the blending and scheduling processes lend themselves to mathematical optimization. Since the introduction of linear programming in the 1950s, increasingly powerful computer programs have become available to help refinery managers.
Blending optimizers, which provide the best recipe for making a particular product, have now reached an advanced state of sophistication. The mathematics, however, become more complex with the consideration of both the best time to blend a product and the best product to blend.
Until the past few years, commercially available computer programs generally tackled only one half of the problem: either blend-recipe or blend-schedule optimization.
Blend-recipe optimizations have a fixed schedule. That is, the refinery knows which product it needs to produce, when, and in which tank to store it.
The program provides the optimum recipe based on the components available at the time.
Blend-schedule optimization, on the other hand, has fixed recipes and projected component stock levels. The computer tool indicates which product to blend and the best time to do it.
It is necessary to resort to mathematical theory to understand why these two elements of the problem are not easily combined. In mathematical terms the first problem involves building a nonlinear model and the second requires building a mixed-integer model.
Putting these together results in a mixed-integer, nonlinear programming problem (MINLP), which is extremely difficult to resolve satisfactorily.
Shell's MPMP tool is able to get around this problem, enabling the full picture to be analyzed.
MPMP is unusual in addressing the optimum blending of a variety of products (multiproduct) during an extended time period (multiperiod). It does this using an innovative four-step algorithm, which focuses on individual aspects of the problem in turn (see figure).
In the first step, the algorithm aggregates the product requirements over time and finds an approximate solution to the problem.
The next stages sequentially refine the solution, first focusing on the issue of pooling the rundown streams from different units, then addressing blend-batch timings and product-tank allocations.
Finally, the algorithm establishes batch volumes and optimal recipes.
In essence, the solution algorithm emulates the decision-making process adopted in most refineries: planning, followed by scheduling, then oil-movements or operations.
Users' standpoint
Arguably more important than how the program works is what the user sees. An advanced modeling environment called AIMMS (Advanced Integrated Multidimensional Modeling System), developed by Paragon Decision Technology BV, Haarlem, the Netherlands, contains the MPMP core functionality.
As a result, the mathematical complexities are hidden behind a user-friendly, graphical interface.
The program runs on a high-end PC with Microsoft Windows.
MPMP comes as a standard but highly flexible software package. During implementation, the system is configured to reflect the exact way an individual refinery works.
Any special site requirements can, if necessary, be rendered as subprograms (so called applets) and linked into MPMP via its application programming interface (API).
The versatility of the software is such that it can be easily tied into the overall business decision-making process, helping to address the most fundamental goals of the refinery.
Getting the right data into MPMP in a consistent form is particularly important. Again, on-site implementation includes the development of a dedicated data provision system (DPS) to draw in the required information automatically.
Open Database Connectivity (ODBC) links are available for common databases, such as Oracle and Microsoft Access, and a link to Microsoft Excel is also possible.
The program needs considerable data to provide reliable output.
This ranges from the timing of arrival, quantity, and composition of the rundown streams to the required product-lifting pattern-timing of deliveries, quantity, and their specifications.
It also has to have the appropriate "blending rules" and be aware of any recipe restrictions.
Finally, there are various physical and operational constraints that need to be submitted: for example, permitted pipeline flows or routing limitations and maximum and minimum tank capacities.
Not all refineries share the same business and operational targets. For this reason MPMP users can select from a variety of objective functions and apply weightings to them.
Economic factors, such as blending margin and cost, and operational issues, such as quality give-away and the number of oil movements, can be balanced in this way.
Given proper input data, the user can expect MPMP to provide the following kind of information:
- Timing and volume of the blend batches and in-line blends.
- Assignment of blending activities to the available blenders.
- Optimal blend recipes.
- Optimal assignment of blends to and liftings from the product tanks.
- Operational blending instructions formatted in such a way that they can be fed directly into real-time blending control systems.
It is possible that the program finds no feasible solution to the problem the user has set. If so, it indicates this, analyzes the sources of the infeasibility, and suggests ways around it.
On-line and off-line use
MPMP can be used in two distinct modes: on-line to support routine blending operations and off-line for studies and analysis. Like other Shell refineries using MPMP, SAPREF used the tool in both these ways.
The refinery used MPMP to provide an optimal blend schedule extending forward for 2 weeks.
The recipes generated were then used to steer an on-line, real-time blend trimming system, SBPC, supplied by Honeywell. The post-blending data were subsequently returned to MPMP to help update the look-ahead.
Operating in tandem, also referred to as using the "total blending solution," allows the strengths of each system to be exploited.
MPMP first generates a forward-operating envelope using its power of economic analysis; then the on-line optimizer works within this envelope but optimizes each individual blend based on the immediate and more-accurate data available at the operations level.
The principal target at SAPREF was to reduce the working capital by bringing down safety stock levels.
That is, the refinery desired to operate as close as possible to the operational stock constraints.
It achieved this by improving the monthly planning process, using MPMP to challenge the LP (linear programming) plan and to adjust it to current market conditions. In this way, for example, SAPREF significantly reduced the safety stocks of full-range catalytic cracked gasoline.
The refinery also met a secondary target to improve operational blending, that is, to reduce quality give-away.
These measures together accounted for about 20% of the MPMP-related saving during the year.
It is worth noting that SAPREF suffered a series of operational upsets during this period, which limited the use of MPMP. The refinery aims to make greater use of the tool on-line in the future and so expects the savings from this application to rise.
Most of the recorded savings at SAPREF resulted from using MPMP for off-line studies.
It was used particularly to help predict the best time for process unit shutdowns and to evaluate trading and business opportunities. In these cases, the output from the system enabled decisions to be made that resulted in quantifiable financial benefits.
MPMP has proven that it can improve refinery margins through its look-ahead capability. It is fully economics-driven and geared to assisting the user to challenge blending margins by operating as closely as possible to the existing constraints.
As a result, it provides the user with the ability to influence the broader business picture.
The $1.5 million 1-year savings at SAPREF represents an MPMP payback period of only several months. The refinery processes an average of 170,000 b/d of crude oil.
The saving achieved was hence equivalent to 2.4¢/bbl.
As this savings was recorded during a difficult year for the refinery, the refinery estimates that the saving could have been closer to 4.0¢/bbl.
Acknowledgment
Avi Breiner was the driving force behind the development of MPMP and devised the innovative algorithm which forms its basis. Sadly, he recently died following a battle against cancer.
The authors
Avi Breiner was senior planning and scheduling consultant at Shell Global Solutions International, The Hague. He was responsible for the research program in advanced planning and scheduling. Prior to this position, he was responsible for research and development in the areas of advanced decision support and operations research at Shell Research, Amsterdam. Breiner held a PhD in industrial engineering from the Technion-Israel Institute of Technology, Haifa, Israel.
Rafi Maman is principal engineer of supply chain technologies at Shell Global Solutions International, The Hague. He is responsible for identifying and exploiting new technologies and business opportunities in the area of supply chain management and e-business for the downstream oil industry. He has previously held various international positions with Shell, including R&D engineer, product manager, project manager and senior consultant. Maman holds a BSc in information systems engineering from the Technion-Israel Institute of Technology, Haifa, Israel.
