Raw seismic velocities aid predictions in mud program designs

Nov. 6, 2017
Geologically realistic models generated from raw seismic velocities can predict pore pressure and fracture gradients useful in designing safe, economic predrill mud programs.

Khalid Amin Khan

Oil and Gas Development Co. Ltd.

Islamabad, Pakistan

Anees Ahmad Bangash

Gulraiz Akhter

Quaid-i-Azam University

Islamabad, Pakistan

Geologically realistic models generated from raw seismic velocities can predict pore pressure and fracture gradients useful in designing safe, economic predrill mud programs. This article presents an efficient workflow to depict pressure regimes in prospective drillsites generated in the form of 2D cross-sections or 3D cubes. Care must be taken when devising these models as the reliability of subsurface pressure estimates depends on the velocity-model input.

In offshore and frontier areas, predrill estimation of formation pore pressures from seismic data is becoming standard exploration and production practice. Knowing the pore pressure ahead of the drillbit can improve well control through tailored mud programs and casing designs. This process also lowers cost without compromising safety or the environment.

Historical prediction methods

Raw root-mean-square (RMS) velocities can be processed to generate a geologically realistic velocity model. Geophysicists can then use this model to estimate effective stress, overburden stress, pore pressure, and fracture gradients. This article presents the workflow's successful application to seismic velocities along a 2D seismic line and displays how the model can be equally useful generating pore pressure and fracture gradient cubes in 3D seismic.

Pore pressure is the acting pressure on fluids in the pore space of a formation. Estimates of subsurface pressure regimes are important for minimizing risk and uncertainty associated with drilling, and pore pressure information is useful in all exploration and development phases.

During exploration, pore pressure data can increase understanding of basin geometry, trap integrity, hydrocarbon migration pathways, and the distribution of pressure with respect to structure and identification of sealing and leaking faults.1 Pore pressure data minimize drilling risk by applying appropriate mud weight and optimizing casing design to keep the well under control.

Engineers historically predicted pore pressure using logs from nearby wells. In recent years seismic velocities allow generation of 2D pore pressure sections and 3D pore pressure volumes, but each technique has its limitations.

Pore pressure estimates from well logs are spatially limited, but are accurate for a depth range at the well point. Seismic data have good spatial coverage from top to bottom, but pore pressure predictions are dependent on the accuracy of seismic velocities. Advancements in seismic data processing have provided more accurate velocities in recent years, resulting in more reliable pore pressure estimates. Previous studies have attempted to predict pore pressure from resistivity and sonic logs, and others have discussed estimation of fracture gradients from logs (OGJ, Feb. 13, 1967, p. 92).2-9

Studies also discussed pore pressure estimates derived from seismic which show the importance of accurate velocity models in determining pore pressure.10-15 A variety of velocity techniques are useful in predicting pore pressure.1 16

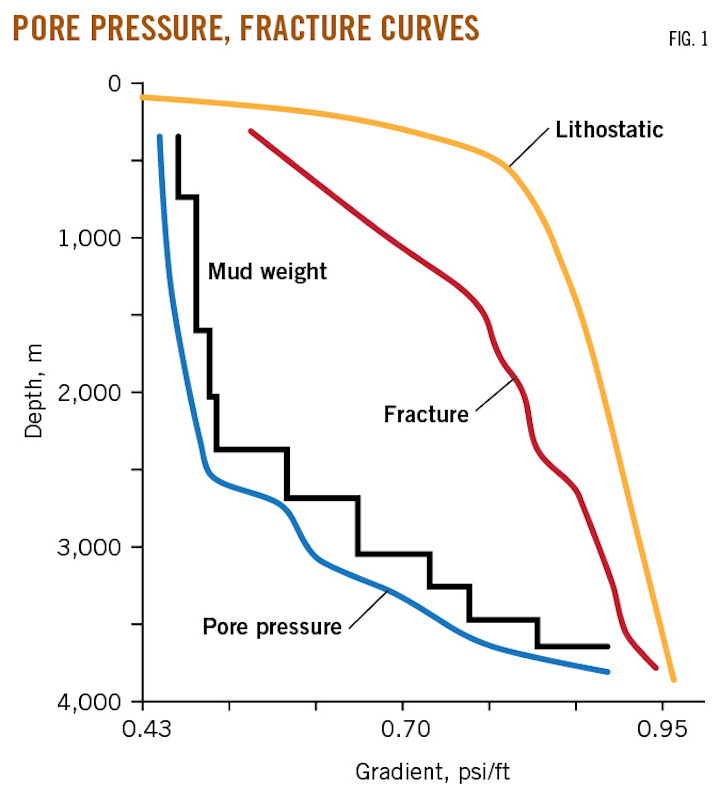

In mud designs, pore pressure gradient defines the minimum weight limits while fracture gradient defines the upper weight limits (Fig. 1). Formation fluids exert pressure on the borehole wall. To avoid fluid influx and wellbore collapse, mud weight should always be higher than pore pressure. In contrast, if the mud weight is higher than the formation fracture gradient the wellbore will fracture, releasing mud into the formation.

Prediction method

The simple workflow presented in this article predicts pore pressure and fracture gradient using seismic-derived velocities.5 14

Pore pressure prediction links pore pressure (Pp), overburden pressure (Sv), and vertical effective stress (σv) (Equation 1).18 Overburden pressure at any depth is a product of the combined weight of the rock matrix and pore fluids overlying the formation. Vertical effective stress is the pressure acting on the solid-rock framework. Effective stress controls the compaction in rocks and reducing it results in overpressure.19-20

Equations 2 and 3 represent relationships for pore pressure prediction using resistivity and sonic logs.4 Where Phyd is hydrostatic pressure and Δtlog and Rlog are sonic transit time and resistivity from logs, respectively. Transit time (Δtn) and resistivity values (Rn) form the normal compaction trends.

The exponents in Equations 2 and 3 can be changed to better match pore pressure predictions from different regions, but the selection of the correct normal compaction trend line can be problematic.13

Equation 4 presents an empirical relationship between seismic interval velocity (Vint) and vertical effective stress. Vml is velocity at mudline, usually 5,000 ft/sec. The calibration parameters are adjusted as A=19.8 and B=0.62. Equation 4 can effectively predict pore pressure by transforming velocity to effective stress.

The workflow's calculations also derive overburden pressure from the velocity data. Equation 5 transforms density to velocity and computes densities (ρ) for each interval.20

With the derived densities, Equation 6 computes overburden pressure where Zm and ρm are thicknesses and densities of each formation interval and f is the number of formations.

Equation 7 provides the general overburden pressure trend with depth (Z).21 Pore pressure is calculated as the difference between overburden pressure and vertical effective stress. Equation 8 computes the fracture gradient (Fg) where Sv/Z is overburden gradient, Pp/Z is pore pressure gradient, and µ is Poisson's ratio computed from compressional velocity and derived shear velocity.23

Accurate velocity is the most critical parameter for reliable pore pressure prediction. Many velocity determination techniques are available in seismic data processing, including:1

• Automated velocity analysis.

• Dense velocity analysis.

• Geologically consistent velocity analysis.

• Horizon-based velocity analysis.

• Residual velocity analysis.

• Reflection tomography.

• Seismic inversion.

Velocity-to-pore pressure

An organization chart of the workflow presented is demonstrated on a velocity dataset along a 2D seismic line to show the output of each stage (Fig. 2). RMS velocities are obtained from seismic data in the form of velocity functions. Each function consists of velocity-time pairs picked at prominent reflectors during velocity analysis. These picks do not represent the true geologic intervals as velocity analysis is performed by stacking the data without migration. For pore pressure prediction, therefore, these raw velocities need to be refined into a geologically realistic velocity model (OGJ, Dec. 5, 2011, p. 52).

This method applies spatio-temporal interpolation to the input velocities with spatial intervals of 1-10 common-depth points (CDP) and temporal intervals of 50-200 ms, resulting in an equally spaced velocity grid (Fig. 3).

A moving-average operator smooths the velocity trend and filters out any sharp kinks caused by potential mispicks during velocity analysis. If a well control reading is available, these velocities can be calibrated using the well velocities. Geophysicists use interpreted horizons to interpolate the velocities at each horizon, placing the velocity-time pairs in a velocity function at true geologic intervals. These functions can then be converted into interval velocities.25

The interval velocities undergo a time-to-depth conversion to generate a velocity model that closely follows the depth section generated from interpreted horizons and faults. The velocity model consists of closely spaced velocity-depth pairs. A visual output-input language (OIL) program transforms velocity models into pore pressure and fracture gradient sections or cubes.24-26 The resulting velocity field is then converted into vertical effective stress.13

Fig. 4a shows a 2D cross-section of vertical and lateral variations in vertical effective stress. The velocity data are also transformed into density.20 The workflow can use density data to compute overburden pressure and subsequently overburden gradient (Figs. 4b-4c). Computations with vertical effective stress and overburden pressure can generate pore pressure and pore pressure gradient cross-sections (Figs. 4d-4e). In the final steps, the workflow transforms velocity data into shear velocity and Poisson's ratio to generate a fracture gradient cross section (Fig. 4f).

Evidence shows that pore pressure gradient is always lower than the fracture gradient, and together these two gradients define the window for designing the mud program.

The pore pressure and fracture gradient curves at the proposed drill location can be generated from their respective cross-sections. For the example in this article, the input velocity data represent a 2D cross-section. The presented workflow is equally useful in processing 3D velocity data to generate cubes of vertical effective stress, overburden pressure, overburden gradient, pore pressure, and fracture gradient.
