Fuzzy logic addresses turbine vibration on Algerian gas line

This study will first examine the contribution of fuzzy techniques to the modeling of different control parameters of the gas turbine, allowing development of a comprehensive model based on fuzzy clustering, using algorithms based on fuzzy inference systems for classification of real data from the examined turbine. It will then examine and illustrate the obtained fuzzy model’s usability on the SC3 turbine. Results show the effectiveness of the proposed approach.

Fuzzy modeling

Implementing the laws governing equations of complex operating systems typically requires a model too complex to implement. This study required the use of modeling techniques developed from measuring system input and output.

Fuzzy identification and modeling from experimental data are effective tools for approximating industrial systems. Takagi-Sugeno (TS) is among the widely used models. Classification combines with least-square techniques to build the TS model. In this article, fuzzy clustering and the different algorithms associated with it will be used to model the gas turbine based on real data.

Fuzzy clustering algorithm

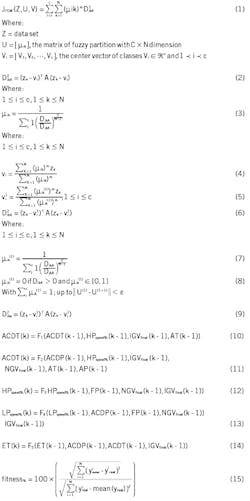

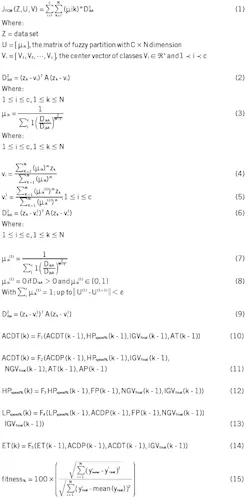

The fuzzy clustering algorithm is a benchmark among the different methods of fuzzy clustering based on minimization of the objective function given by Equation 1, and determination of the required vector by Equation 2. Equation 3 presents the standard quadratic distance for the space in question, defining the distance between observation and Zk (center) within the metric induced by A and m∊[0,∞] and indicating the fuzzy degree of the partition.

Equations 3 and 4 minimize the objective function of Equation 1.

To apply the algorithm to data set Z we chose the class number, 1≺c≺N, the exponent m ≺ 1, with stopping tolerance ε, and the standard matrix, A; randomly initializing partition matrix U after repeating the operation for l=0,1,2.

Equation 5 calculated the cluster centers, and Equation 6 the cluster centers’ distances.

Equation 7 updates the partition matrix if Dika0≻0 for 1 ≤ i ≤ c,1 ≤ k ≤ N allowing operation of the proposed algorithm (Equation 8).

The matrix chosen, A, determines form class in the equation of the objective function. The particular choice, A=I, induces the standard Euclidean norm given by flowing Equation 9.

When expert knowledge is not available, data must identify the structure in question. A fuzzy classification method can then partition the data into classes. Each of these classes, or fuzzy regions, is characterized by a vector called class center. An audit determining degree of similarity groups the data. An appropriate distance measure, quantifying both the distance between data represented as points in the feature space and groups of centers, feeds this audit.

Fuzzy-logic controller

Fuzzy controllers are mainly used in system control for industries. The fuzzy-logic controller includes the following main functions:

• Fuzzification.

• Inference engine.

• Rule-based design.

• Defuzzification.

Fig. 1 shows a fuzzy controller block diagram. Fuzzification is the process of converting real scalar value into fuzzy classes. This article uses the Gaussian membership function for inputs and a triangular membership function for outputs. The inference engine decides how to process rules using fuzzy input.

Inputs for the fuzzy controller are error and change in error. The control signals vary according to these parameters. Once the fuzzy controller receives input, the rule base is evaluated. The rule base is built using if-then statements with two input conditions and one output response. Defuzzification is the process of converting the degrees-of-membership output linguistic variables into concrete values.

Process description

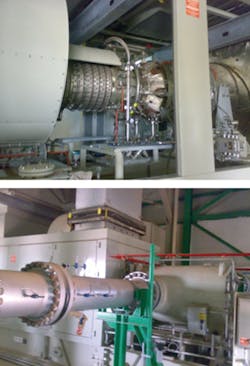

The SC3 gas compression station is equipped with a Solar Titan 130 gas turbine (Fig. 2) and auxiliary equipment. The Solar Titan 130 gas turbine consists of three main sections: the axial compressor, the combustion chamber, and the turbine. There is also a variable inlet guide vane (IGV) in the axial compressor’s inlet and a variable nozzle guide vane (NGV) in its turbine section.

Two valves at the inlet fuel line of the combustion chamber are the main controlling devices of the gas turbine: one controlling inlet fuel pressure, the stop ratio valve (SRV), and one governing load-shaft speed, the gas control valve (GCV).

Application results

Fuzzy clustering provided initial training of a Takagi-Sugeno inference system by extracting a set of rules that model gas turbine data behavior, using separate sets of input and output data as arguments in creating a training algorithm. Fig. 4 and 5 show the data clusters and their centers. Fig. 6 and 7 show these data regrouped and classified.

An algorithm called fuzzy c-means collects the data into the fuzzy subsets or “clusters” based on similarities. Modelling should not be done across the entire range of operations data-e.g., startup, shutdown, normal operation-but should instead use a different model for each mode. This article further divided the turbine into its subsections, including axial compressor, high-pressure (HP) shaft, low-pressure (LP) shaft, fuel system, and exhaust system.

Equations 10 and 11 model the axial compressor’s two main variables: discharge temperature (ACDT) and pressure (ACDP). Equation 12 expresses normal HP shaft operations and Equation 13 normal operations for the LP shaft. Equation 14 models normal exhaust system operations. In all cases Fn,n=1,2...,5 are the fuzzy inference systems trained using real turbine data.

Several hours of turbine data tested and validated this nonlinear model’s accuracy. Fig. 8 shows HP shaft-speed model fitness of 96.14% and Fig. 9 exhaust system fuzzy model validation of 94%. Equation 15 determined level of validation.

A fuzzy clustering algorithm has the essential advantage of automatically generating membership functions, or fuzzy regions, from the data, using a minimizing cost function. This technique plays an important role in achieving optimal data classification.

Fig. 10 shows performance of the fuzzy controller.
